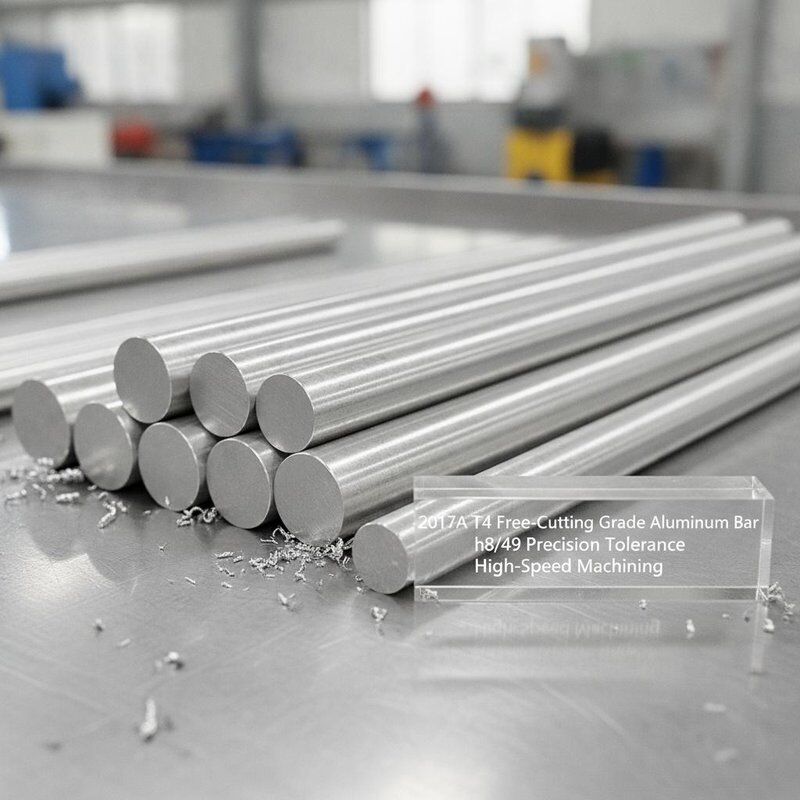

2017A T4 Free-Cutting Grade Aluminum Bar with h8/h9 Precision Tolerance for High-Speed Machining
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | ECER |
| Πιστοποίηση: | ASTM B211 / EN 755 / ISO 9001 |
| Αριθμό μοντέλου: | 2017A-T4-FCB |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 500 κιλά |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Τυποποιημένη πλόιμη συσκευασία εξαγωγής |
| Χρόνος παράδοσης: | 5~15 ημέρες |
| Όροι πληρωμής: | T/T, L/C |
| Δυνατότητα προσφοράς: | 1500 τόνοι/μήνας |
|
Λεπτομερής ενημέρωση |
|||
| Κράμα: | 2017 Α | Ιδιοσυγκρασία: | T4 |
|---|---|---|---|
| Εύρος διαμέτρου: | 5 mm - 150 mm | Μήκος: | 2000 mm - 4000 mm ή Custom |
| Σχήμα: | Στρογγυλό μπαρ | Φινίρισμα επιφάνειας: | Σχεδιασμένο / Γυαλισμένο |
| Πυκνότητα: | 2,79 g/cm³ | Αντοχή σε εφελκυσμό: | ≥ 390 MPa |
| Δύναμη διαρροής: | ≥ 250 MPa | Επιμήκυνση: | ≥ 12% |
| Αξιολόγηση μηχανικής ικανότητας: | Άριστα (Βαθμός δωρεάν κοπής) | Ανοχή: | h8 / h9 Βαθμός ακριβείας |
| Εφαρμογή: | Αυτόματος Τόρνος CNC, Κατεργασία υψηλής ταχύτητας, εξαρτήματα ακριβείας | ||
| Επισημαίνω: | 2017A T4 Free Cutting Aluminum Bar,CNC Automatic Lathe Precision Rod,High Speed Machining Round Aluminum Bar |
||
Περιγραφή προϊόντων
2017A T4 free cutting round aluminum bar is specifically formulated for high-speed CNC automatic lathe machining operations. With its copper-rich alloy composition and optimized grain structure, 2017A delivers superior chip breaking characteristics, reduced tool wear, and excellent surface finish quality—making it the go-to material for mass production precision components.
- Exceptional Machinability: Free-cutting grade aluminum with excellent chip formation and breakage for automatic lathes
- High Production Efficiency: Enables faster cutting speeds and feed rates compared to standard 6061 aluminum
- Precision Tolerance: Supplied in h8/h9 tolerance grades for consistent dimensional accuracy
- Reduced Tool Wear: Optimized alloy composition minimizes cutting tool consumption
- Excellent Surface Finish: Achieves superior surface quality directly from machining
| Item | Specification |
|---|---|
| Alloy | 2017A |
| Temper | T4 |
| Diameter Range | 5 mm - 150 mm |
| Length | 2000 mm - 4000 mm or Custom |
| Standard | ASTM B211 / EN 755 |
| Tensile Strength | ≥ 390 MPa |
| Yield Strength | ≥ 250 MPa |
| Tolerance | h8 / h9 Precision Grade |
- CNC automatic lathe mass production parts
- Precision turned components and fittings
- High-speed machining of connectors and fasteners
- Automotive sensor and valve components
- Pneumatic and hydraulic system parts
Unlike general-purpose 6061 which can produce long, stringy chips that tangle around tooling, 2017A T4 generates short, manageable chips ideal for automatic lathe operations. This results in faster cycle times, reduced downtime, and higher throughput in high-volume production environments.
A: Its copper and lead content promotes short chip formation and reduces cutting forces during machining.
A: Yes, 2017A T4 is specifically designed for high-speed automatic lathe and CNC turning operations.
A: We supply 2017A bars in h8 and h9 precision tolerance grades.
A: Anodizing is possible but the appearance may differ from 6000 series alloys due to its copper content.
